Mekko drying and storage cabinets

Mekko Technologies "Active Desiccant" Dry Storage Cabinets

Our cabinets are used in a wide variety of applications involving moisture removal and dry storage. The main industry sector installing Mekko's dry storage cabinets and drying cabinets is the electronics assembly industry, where components and substrates must be protected from the damaging effects of moisture.

Allows compliance with IPC/JEDEC J-STD-033, which details recommendations for handling, packing, shipping and use of moisture/reflow sensitive surface mount devices.

If moisture is absorbed from the environment by surface mounted components, and then the components are exposed to high temperatures, as in solder reflow ovens(convection, infrared, IR/convection, vapour phase, hot air rework tools), then the absorbed moisture will expand rapidly, causing internal device stress. The resulting stress can cause internal or external cracking, delamination, and internal corrosion.

Eliminate "popcorning" and micro-cracking of ICs and BGAs during reflow by using Active Desiccant component drying and storage, rather than baking.

Drying out the components resets the "floor life" clock.

Download our pdf brochure here


Xflow drying cabinets

Active desiccant cabinets offer the best solution for storage and drying

  • Only costs: The cabinet and electricity.
  • There is no need for any extra consumables or services to operate the unit.
  • Running costs are only around 75,00 Euro/year.
  • Our cabinets are equipped with a new desiccant rotor system incorporating our own "MTX-Flow" technology. This new development is more efficient and faster reacting than our competitors. This unit is installed inside the cabinet to keep the internal humidity between 1% and 3%RH.

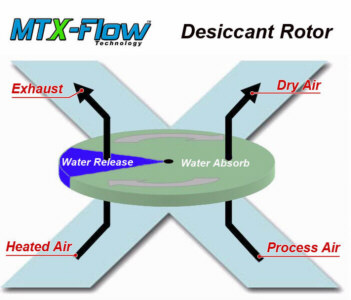

Xflow Diagram

Benefits of the ACTIVE desiccant system:

  • No need for moisture barrier bags, nitrogen, compressed air.
  • Less complicated than baking: Reduces oxidation.
  • Can use low temperature packaging.
  • Suitable for compliance with IPC/JEDEC standard J-STD-033C.
  • Meter for internal humidity and temperature included.
  • Closed loop control of internal humidity.
  • No "off" time. The desiccant will always be absorbing moisture.
  • Continually regenerating molecular sieve desiccant.
  • Fast recovery time after a door is opened (2 minutes).
  • Very accurate humidity display +/-1%RH (Normally only +/-3%RH with our competitors!)



AD-101

Mekko Technologies AD101 Drying Storage cabinet

Maximum 10 removable sliding shelves
1 door, table-top cabinet
Capacity ca. 250 litre
Dim: 775(H) x 700(W) x 750(D)

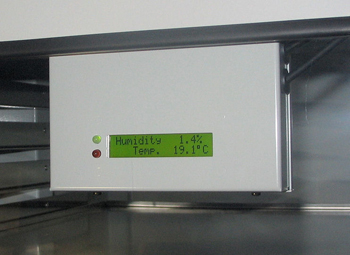

Humidity Meter

Mekko Technologies Humidity Meter

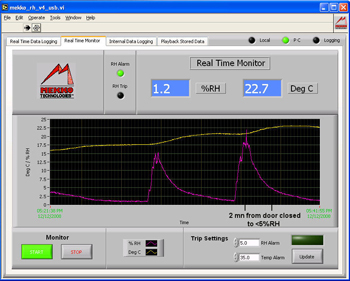

Computer readout for drying cabinet

Real time computer read out for drying cabinets

AD-202

AD-202 Drying and Storage Cabinet

Maximum 20 removable sliding shelves
2 doors, floor standing cabinet
Capacity ca. 450 litre
Dim: 1245(H) x 700(W) x 750(D)

Humidity Meter

Mekko Technologies Humidity Meter

Computer readout for drying cabinet

Real time computer read out for drying cabinets

AD-303

Mekko Technologies AD-303 Drying Cabinet

Maximum 30 removable sliding shelves
3 doors, floor standing cabinet
Capacity ca. 750 litre
Dim 1770(H) x 700(W) x 750(D)

Humidity Meter

Mekko Technologies Humidity Meter

Computer readout for drying cabinet

Real time computer read out for drying cabinets

AD-305

AD-305 Drying Cabinet

Maximum 30 removable sliding shelves
5 doors, 3 one side, 2 opposite side
Capacity ca. 750 litre
Dim: 1770(H) x 700(W) x 750(D)

Humidity Meter

Mekko Technologies Humidity Meter

Computer readout for drying cabinet

Real time computer read out for drying cabinets

AD-606

AD-606 Drying Cabinet

Maximum 60 removable sliding shelves
6 doors
Capacity ca. 1300 litre
Dim: 1770(H) x 1400(W) x 620(D)

Humidity Meter

Mekko Technologies Humidity Meter

Computer readout for drying cabinet

Real time computer read out for drying cabinets

Telescopic Drying Cabinet System

Telescopic Drying Cabinet System

Other Options

  • Larger 6-door cabinet, AD-606XL = 2100(H) x 1400(W) x 1150(D)
  • 4-door cabinet, AD-404 = 1245(H) x 1400(W) x 750(D)
  • Convection heater for faster drying of components, pcbs etc
  • Static dissipative EVA mats
  • Static dissipative powder coat
  • Locking doors
  • Vertical racks for tape reels
  • Fixed stainless steel shelves
  • Telescopic sliding fixed shelves
  • Status light tower
  • Audible alarm
  • Pass-through systems with doors on front and back
  • Data recording software, with memory or real-time feedback
  • Refrigerated cabinets
  • Nitrogen cabinets
  • Any number of doors (eg 9 doors, 16 doors)
